Inverters

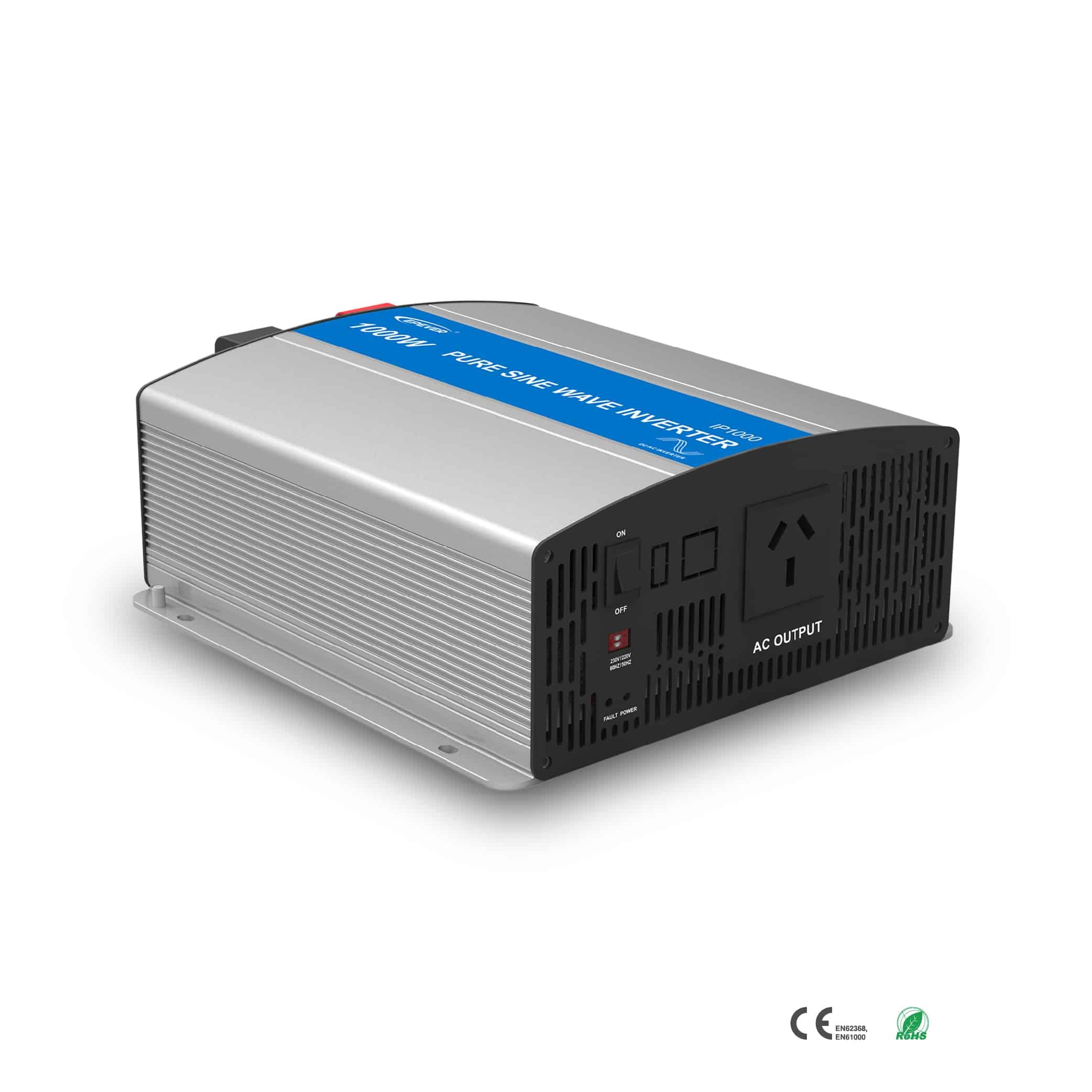

IPower series is a pure sine wave inverter which can convert 12/24/48VDC to 220/230VAC(or 110/120VAC). The power is from 350VA to 2000VA. The inverter can be applied in many fields. Its wide input voltage range is ideal for solar system applications.

Features:

• Safe design with input and output electrical isolation
• Adoption of advanced SPWM technology, pure sine wave output
• Optional output voltage220/230VAC (or 110/120VAC ), set by DIP switch
• Output frequency 50/60Hz, set by DIP switch
• LED indicators for working and fault status
• Lower No-load consumption
• Max. efficiency up to 95%
• Input protection: Over voltage protection, low voltage protection
• Output protection: Overload protection, short circuit protection
• Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when over temperature.

TECHNICAL SPECIFICATION:
Continuous output power : 1600W
Output power 15 min. : 2000W
Surge power : 3200W
Output voltage : 220VAC(±5%) 230VAC (-10%～+5%)
Output frequency : 50/60±0.1Hz
Output wave : Pure sine wave
Output distortion : THD ≤3%
Load power factor : 0.2-1(Load VA ≤ Continuous output power)
Rated input voltage : 48VDC
Input voltage range : 43.2 ~ 64.0VDC
Input surge voltage : ＜80VDC
Max. output efficiency : 95%
No-load current : ＜0.4A
USB output : 5VDC/Max.1A
RS485 com. port : 5VDC/200mA
Dimension (LxWxH) : 326.1 × 231.5 × 98.5mm
Mounting dimension : 163 × 219.5mm
Net weight : 3.9kg
Operating temperature range : -20℃~ +45℃
Relative humidity : < 95%(N.C.)
Enclosure : IP20
